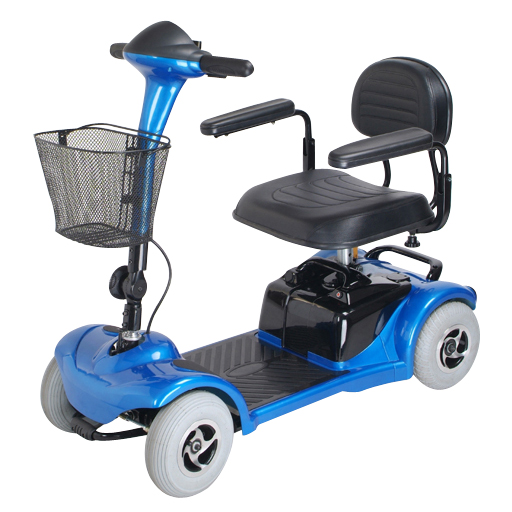

Model YH1030
 Overall
Dimension: 1090(L) x 480(W)
x
890(H) mm |
| Net Weight
: 30kgs ( without batteries) |
| Turning
Radius: 838mm |
| Forward
Max. Speed: 6.8km/ h |
| Backward
Max. Speed: 3.4km/ h |
| Max.
Climbing Grade: 8
degree |
| Range:
22km ( with 2 x 20Ah batteries) |
| Ground
Clearance: 48 mm |
| Carrying
Capacity: 100kgs |
| Standard
Seat: foldable |
| Seat
Dimension: 405(L) x 420(W) x
440(H)mm |
| Seat
Material: black vinyl |
Seat
Weight: 7.4kgs |
| Drive
System: rear-wheel drive, sealed
mini transaxle, 24V DC motor |
Braking
System: electromagnetic
|
| Tires:
tire size 4 x 9 inch |
| Wheel
Hub: aluminum alloy |
| Battery
Type: 2 x 12V, deep-cycle
lead-acid (Gel)battery |
| Battery
Weight 5.7kgs(12.5
lbs) (each) |
| Battery
: 12Ah or
20Ah
for
optional |
| Battery
Charger: 2 Amp off-board battery
charger |
| Motor
Power: 200W |
