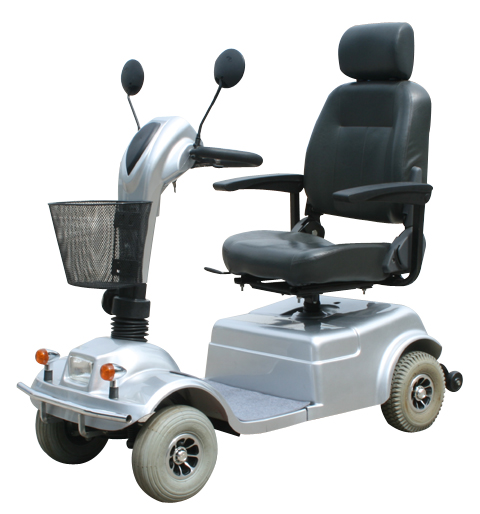

Model YH1050




Specification

Overall dimension 1305 x 640 x 1170mm Motor power 300W
Max speed 8km/h Charger 110-220V (AC); 24V/4.0A
Range 40-48km (38Ah) Battery 12V/38Ah x 2 (14kg x 2)
Max load 120kgs Brake type electric regenerative braking
Turning radius 1.48m Braking distance 1.5m (dry surface)
Max climbing gradient 12 degree Speed adjustment step-less speed control
N.W:  87kgs(with two batteries)
