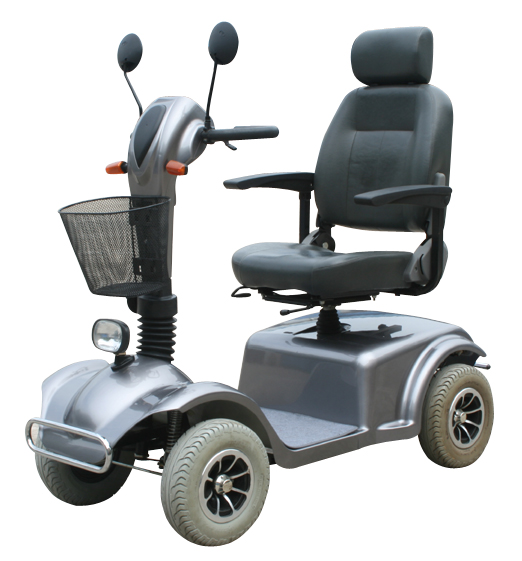

Model YH1060




           Specification:
         Overall dimension: 1440 x 670 x 1330mm
         Max speed: 12km/h
         Range: 40-48km (55Ah)
         Max load: 250kgs
         Max climbing grade: 15 degree
         Turning radius: 1.65m
         Motor power: 800W( Max power;1940W)
         Chargeronboard: 110-220V (AC); 24V/5.0A
         Battery: 12V/55Ah x 218.4kgs x 2

         Brake type: electric regenerative

         braking and hand brake
         Speed adjustment: step-less speed control
         Braking distance: 1.8m (dry surface)
         N.W: 110kgs(with two batteries)
